| RD-52# 200KG (40HQ / 425 Sets) Specifications | |
|---|---|
| Load Capacity | 200KG / Layer |
| Layers | Standard is 4 layers (can be custom made) |
| Colour | Gray white / Sand blue / Customizable |
| Specifications | Length: 2000 mm | Width: 600 mm | Height: 2000 mm |

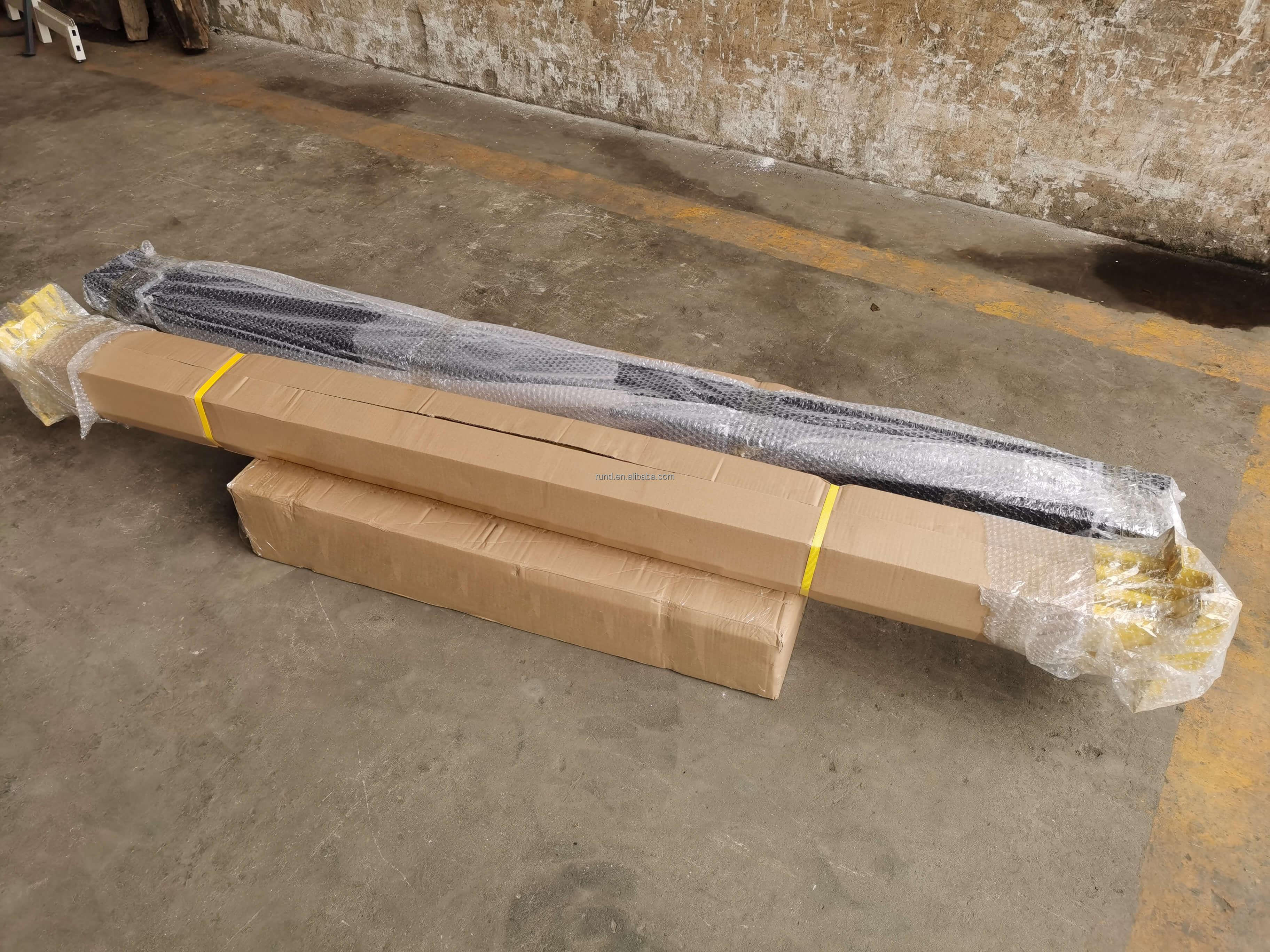

| Features | Removable shelves reduce the packaging volume while maintaining the same load-bearing capacity, saving a lot of transportation costs and improving product competitiveness. |
| 40HQ Capacity | A 40HQ high container can accommodate 425 sets of 200kg shelves. With a carefully designed structure, it is possible to reduce the packaging volume by 40% while maintaining the same load-bearing capacity. |
| Load / KG | Laminate Thickness | Column Specification | Crossbeam Specifications |
|---|---|---|---|
| 100KG | 0.30 mm | 50*25*0.5 mm | 50*30*0.5 mm |
| 200KG | 0.35 mm | 70*35*0.7 mm | 60*35*0.6 mm |
| 300KG | 0.50 mm | 60*30*1.0 mm | 70*33*1.0 mm |
| 600KG | 0.50 mm | 70*33*1.4 mm | 70*35*1.2 mm |
In order to have a better understanding of our product, please allow us to remind you with the following three tips:
We are a direct factory specializing in supermarket shelves, display stands, and storage racks. Our team has over 30 years of experience in shelf design, R&D, production, and customization.
The shelves and racks are made of high-quality Q235B steel, ensuring excellent durability and load-bearing capacity.
Yes, customizable options for dimensions and load capacities are fully supported.
We have professional designers who can assist you with CAD drawings and 3D layout designs to optimize your space.
Since our shelving systems are available in multiple sizes and load capacities, we recommend sharing your layout and load requirements with us so we can choose the most suitable and cost-effective quotation for you.
It is easy to install our shelves because the design does not require screws or nuts. We also provide installation videos and guides, and technical support is available if needed.
