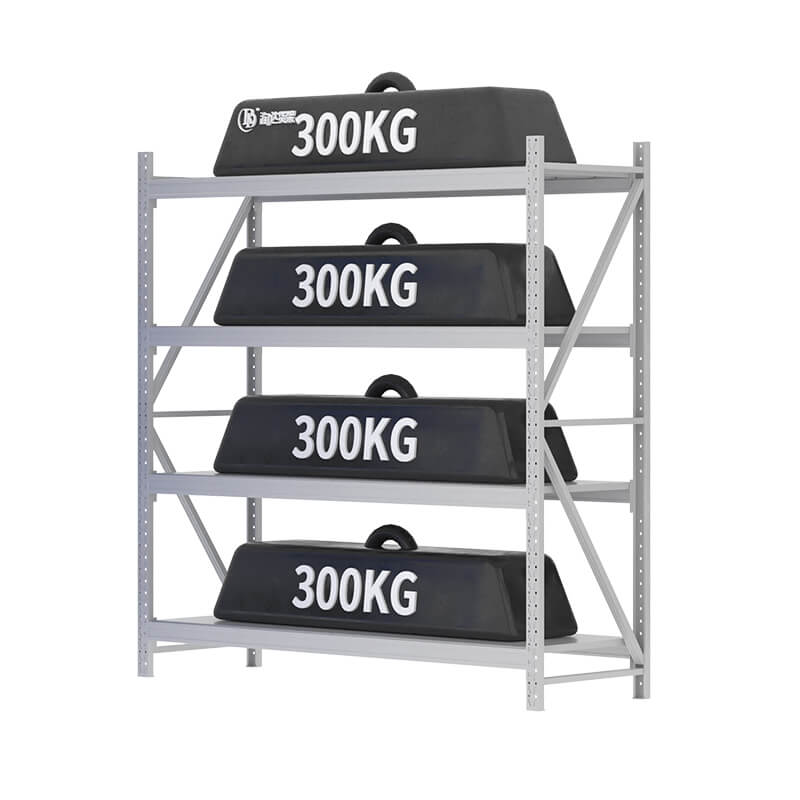

| RD-33# 300KG Technical Details | |
|---|---|
| Load capacity | 300KG / Layer |
| Layers | Standard is 4 layers (can be custom made) |
| Colour | Gray white / Sand blue / Customizable |
| Specifications | Length: 2000 mm | Width: 600 mm | Height: 2000 mm |
| Features | Removable shelves reduce the packaging volume while maintaining the same load-bearing capacity, saving a lot of transportation costs and improving product competitiveness. |
| 40HQ Container Capacity | A 40HQ high container can accommodate 425 sets of 200kg shelves. With a carefully designed structure, it is possible to reduce the packaging volume by 40% while maintaining the same load-bearing capacity. |
| Load / KG | Laminate Thickness | Column Specification | Crossbeam Specifications |
|---|---|---|---|
| 100KG | 0.30 mm | 50 * 25 * 0.5 mm | 50 * 30 * 0.5 mm |
| 200KG | 0.35 mm | 70 * 35 * 0.7 mm | 60 * 35 * 0.6 mm |
| 300KG | 0.50 mm | 60 * 30 * 1.0 mm | 70 * 33 * 1.0 mm |
| 600KG | 0.50 mm | 70 * 33 * 1.4 mm | 70 * 35 * 1.2 mm |
In order to have a better understanding of our product, please allow us to remind you with the following tips:
